Amplify an AC signal through the AD620 inamp and read it through an Arduino's analog input (meaning it will have to be between 0 and 5V).

TODO: Find out why the bottom of the signal is clipping when amplifying 1Vpp.

NOTE: Do connect the oscilloscope probe to (virtual) ground to prevent spikes.

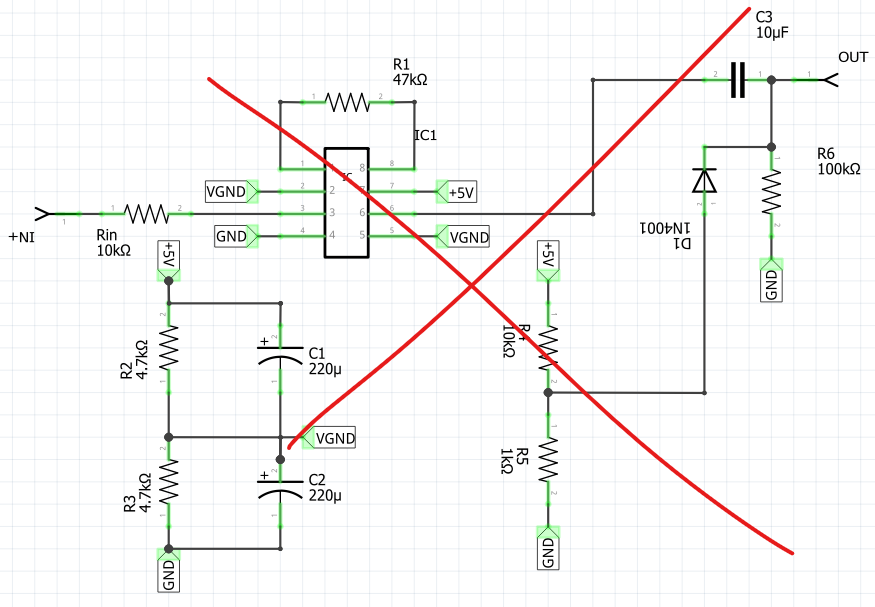

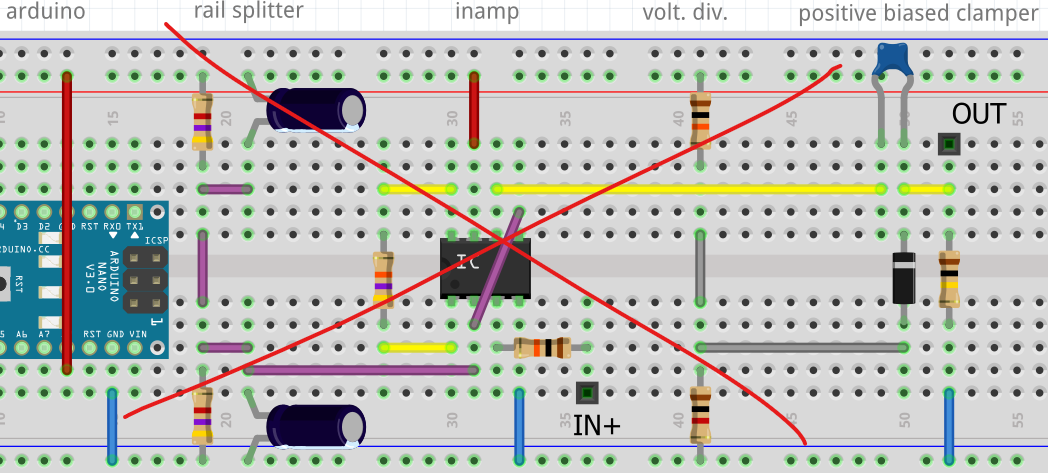

Attempt 1: FAILED. The output voltage is some DC voltage when measured between OUT and GND, and for some reason the amplified signal far below 0V when measured between OUT and VGND.
